Description
Large Engraving Area

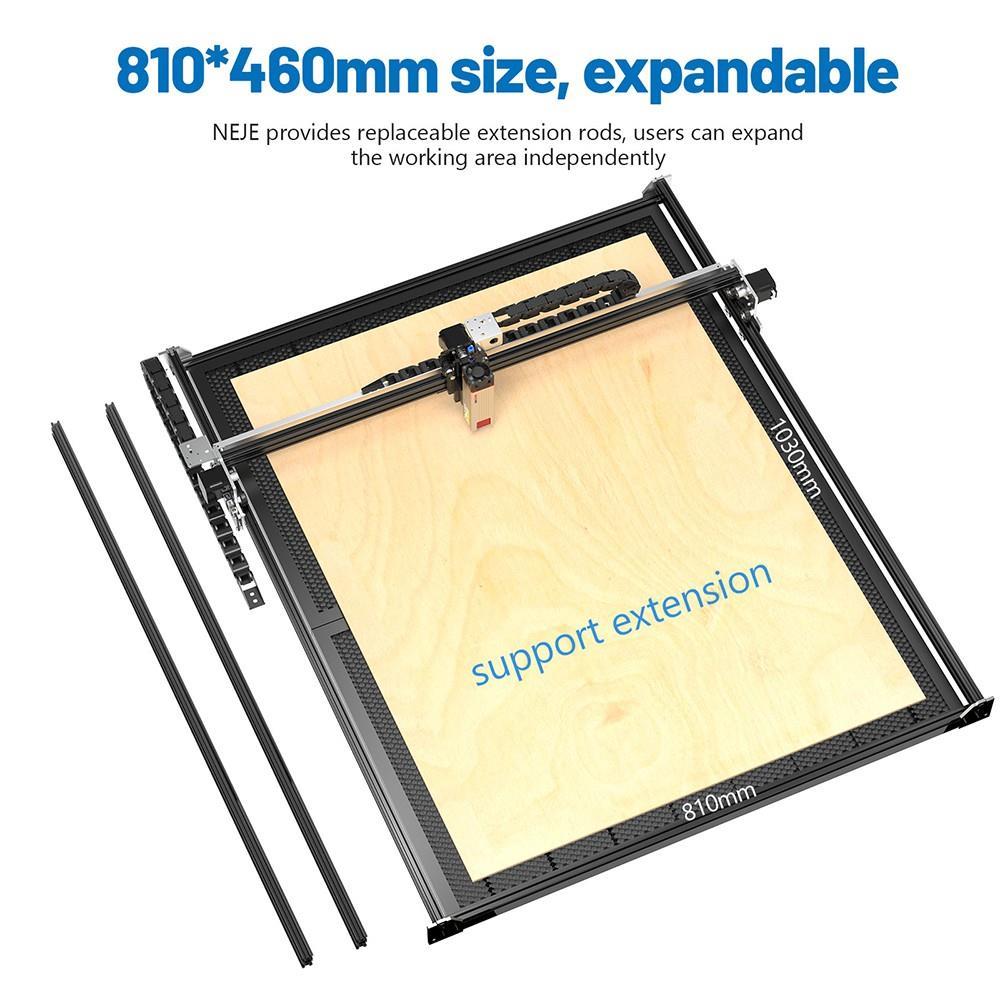

NEJE 3 Max laser engraver features 810 x 460mm working area, expandable 810 x 1030mm, 6133 x 10800 pixel, 0.075mm dot pitch, and 1000mm/s max moving speed. All functions of the whole machine are tested, and only 6 screws are needed to complete the installation.
Advanced Laser Module
NEJE E40 is a 2-beam fixed module with 11W+ pulse and 10W+ continuous power output capability. The minimum focus point reaches 0.06×0.06mm. Compared with NEJE A40640, E40 is more focused on cutting stability, heavy-duty design, easier use of air assist, and more stable output power for cutting.
More Materials and More Clear
Wood, MDF, leather, paper, cotton, etc. are all supported. 8mm plywood only needs to be cut once with air assistance, and the cut is immaculate. It can directly engrave stainless steel. Glass, transparent acrylic, and other materials can be engraved in a certain way.
Portable Professional Control Software
With a 32-bit control system, the fastest speed can reach 60000mm/min. Supports LaserGRBL, Lightburn, NEJE software, and NEJE APP (Android, iOS, iPad, macOS), NEJE 3 Max enables you to make many different exquisite works.
Perfect Reprint Your Design
With high precision all-aluminum alloy and PC material hybrid frame, the movement of this laser engraver is more smooth, more reliable, high-precision, and easy to maintain, which can bring long-lasting machine life. With built-in fast intelligent drive, supports temperature feedback, and can intelligently adjust fan heat dissipation, NEJE 3 Max laser engraver is safe and quiet to use.
Specification
| General | Brand: NEJE Type: Laser Engraver Cutter Model: 3 MAX E40 Color: Black |
| Specification | Frame Size (L – W – H): 590x980x160mm Working Area( X – Y): 810 x 460mm, Extends to 810x1030mm Dot Pitch: 0.075mm, 338dpi Pixel: 6133 x 10800px Drive Accuracy: 0.01mm Max Move Speed: X: 1000mm/s, Y: 750mm/s Frame Material: High precision All-aluminum alloy and PC material hybrid frame Structure Technology: Y-axis fit adjustable design, X-axis stress fit assembly Structure Feature: Fit, High precision, stable, smooth, no oil, easy maintenance, long life Vertical Carving: Yes (45 degrees) Motor Size: 42 x 42 x 34mm Motor Drive Current: 0.9A Module Height Adjuster: Yes Home: Rear Left Origin: Front Left Compatible Modules: All NEJE 4pin Laser Module, including E40 24V Laser module (The motherboard is above v1.1.0)Module: NEJE E40 Focus: 0.06×0.06mm Focus Method: fixed (3mm from the radiator) Optical Power: Pulse 11W+, CW 10W+ Wavelength: 450nm Weight: 280g Module Size: 40x48x130mm Input: DC 12V 4A Interface: 4pin PH2.0 + (2pin DC12v extra power) Compatible with: NEJE 3 Max, NEJE 3 Pro, NEJE 2s Max, NEJE 2s Plus, etc. Power Control: PWM Power Modulation Fan: Double Ball High Life Fan Drive: NEJE Smart Quiet Drive, Built-in static elimination technology. Surge Protection: Yes Smart Feedback: Yes Temperature Feedback: Yes Temperature Control: 45 Celsius Air Pump: 0.5-1.5mpa clean air Air Interface: 4mm PVC trachea Protective Window Lens: Yes (withstand 1000 Celsius) |
| Weight & Size | Product Weight: 5.8kg Package Weight: 6.5kg Package Size(L x W x H): 99x40x19cm |
| Package Contents | 1 x NEJE 3 Max Machine 1 x Laser Module with Air Assist Kits 1 x 12V 5A Power Adapter 1 x USB Cable 1 x Goggles 1 x L-shaped Crawler Aluminum Profile 2 x Crawler 1 x 12V Valve Control Kit (less than 1.5mpa) 1 x 12V Relay Expansion Control Kit (Extra AD or DC power Max 2500W) 1 x Door Control Kit (control line length: 1m) 1 x Screw Nut Wrench Screwdriver Belt Installation Package 1 x Test Material Package 1 x Quality Card 1 x User Manual |
